Produkter Skärverktyg Fräsning Fräsverktyg Pinnfräs Grov-/pinnfräs Pinnfräsar med hörnradius Protostar® Protostar® HSC 30 H4044918 H4044918-2-15

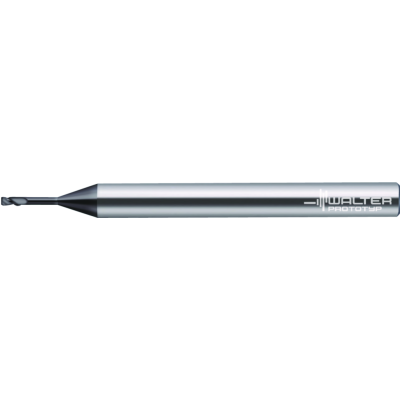

Hörnfräs i solid HM

H4044918-2-15

EAN-kod: 4042446137380
M-helical-interpolation-Icon M-pocket-milling-Icon M-ramping-Icon M-shoulder-milling-wall-Icon
D-M-Z2-Icon M-48HRC-Icon M-Spiralw-30-Icon M-Zentrumsschneide-Icon Recon-Icon
Lång räckvidd Typ Mini HSC 30
P
M
K
N
S
H
O
VAT 0% 108,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-MR-HSC30-H404491-DIN6535HA-HW-D-01
Enlarge
Description Symbol Value
Skärlängd
Lc
2 mm
Verktygsdiameter
Dc
2 mm
Skaftdiameter
d1
3 mm
Kroppsdiameter
d2
2 mm
brukbar längd
l3
15 mm
Total längd
l1
60 mm
Funktionell längd
l4
32 mm
Verktygsbeteckning
Designation
H4044918-2-15
Radie
R
0,2 mm
Antal tänder
Z
2
Compatible products
Adaptors
Products
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulisk expansionschuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulisk expansionschuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulisk expansionschuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulisk expansionschuck
Show variations
AB025-J-P-01
AB025-J
Krympadapter MAS-BT JIS B 6339
Show variations
AB025-H-P-01
AB025-H
Krympadapter DIN 69893-1 A
Show variations
AB017-J-P-01
AB017-J
Hydraulisk expansionsadapter MAS-BT JIS B 6339
Show variations
AB017-S-P-01
AB017-S
Hydraulisk expansionsadapter DIN 69871 AD/B
Show variations
AB025-S-P-01
AB025-S
Krympadapter DIN 69871 AD/B
Show variations
AB017-H-P-01
AB017-H
Hydraulisk expansionsadapter DIN 69893-1 A
Show variations
W-A-AK300T-P-01
AK300.T-IK
ER spännhylsa chuckar
Show variations
SL-K-P-01
REDUZIERHUELSE
Reduceringshylsor för periferikylning
Show variations
AB019 HSK P 01
AB019-H
Hydraulisk expansionsadapter för slanka verktyg DIN 69893-1 A
Show variations
W-A-C330-P-01
C330-ER40
ER-spännhylsor DIN 6499
Show variations
W A C330 P 01
C330-ER32
ER-spännhylsor DIN 6499
Show variations
W-A-C330-P-01
C330-ER25
ER-spännhylsor DIN 6499
Show variations
W-A-C330-P-01
C330-ER20
ER-spännhylsor DIN 6499
Show variations
W-A-C330-P-01
C330-ER16
ER-spännhylsor DIN 6499
Show variations
W-A-C330-P-01
C330-ER11
ER-spännhylsor DIN 6499
Show variations
W A 391 14 CAPTO P 01
391.14-CAPTO
ER-spännhylschuck
Show variations
W A AK300T P 01
AK300.T
ER-spännhylschuck
Show variations
W A AK182 SK P 01
AK182-SK
Hydraulisk expansionschuck DIN 69871
Show variations
W A AK182 HSK P 01
AK182-HSK
Hydraulisk expansionschuck DIN 69893-1 A
Show variations
W A AK182 CAPTO P 01
AK182-C
Hydraulisk expansionschuck Walter CaptoTM ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
Hydraulchuck MAS-BT JIS B 6339
Show variations
W A A305 P 01
A305.0
ER-spännhylschuck DIN 1835 B
Show variations
Z-SEALING-WH-P-01
Z_SEALING
Tätning
Show variations
