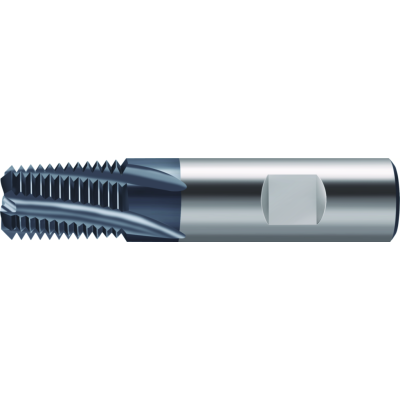

Gängfräs i solid hårdmetall

H5551106-NPT1-2

EAN-kod: 4042446135416
P-Tr-Tapered-Hole-Icon P-Tr-Tapered-Through-Hole-Icon Tr-Profil-NPT-Icon
M-48HRC-Icon Tr-Kon-Fraeser-10-Icon
Universalgängfräs
P
M
K
N
S
H
O
VAT 0% 961,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P-TR-10-H5551106-ZHB-D-01
Enlarge
Description Symbol Value
Skärlängd
Lc
26,02 mm
Verktygsdiameter
Dc
19,9 mm
Kontaktdiameter
d1
20
Gängstorlek
DN
NPT 1-2-1/2
Total längd
l1
92 mm
Maximal projektionslängd
l4
42 mm
Verktygsbeteckning
Designation
H5551106-NPT1-2
Antal tänder
Z
5
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulisk expansionschuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulisk expansionschuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulisk expansionschuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulisk expansionschuck
Show variations
AB017-J-P-01
AB017-J
Hydraulisk expansionsadapter MAS-BT JIS B 6339
Show variations
AB017-S-P-01
AB017-S
Hydraulisk expansionsadapter DIN 69871 AD/B
Show variations
AB044-H-P-01
AB044-H
Weldon-hållare DIN 69893-1 A
Show variations
AB017-H-P-01
AB017-H
Hydraulisk expansionsadapter DIN 69893-1 A
Show variations
AB044-J-P-01
AB044-J
Weldon-hållare MAS-BT JIS B 6339
Show variations
AB044-S-P-01
AB044-S
Weldon-hållare DIN 69871 AD/B
Show variations
W-A-391-20-CAPTO-P-01
AB044-C
Weldon-skafthållare
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Reduceringshylsor för invändig kylning
Show variations
AB019 HSK P 01
AB019-H
Hydraulisk expansionsadapter för slanka verktyg DIN 69893-1 A
Show variations
W A A170M NCT P 01
A170M.0
Weldon-skafthållare
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon-skafthållare
Show variations
W A AK182 SK P 01
AK182-SK
Hydraulisk expansionschuck DIN 69871
Show variations
W A AK182 HSK P 01
AK182-HSK
Hydraulisk expansionschuck DIN 69893-1 A
Show variations
W A AK182 CAPTO P 01
AK182-C
Hydraulisk expansionschuck Walter CaptoTM ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
Hydraulchuck MAS-BT JIS B 6339
Show variations
