Produkter Skärverktyg Fräsning Fräsverktyg High-Feed-Fräser MD025 Supreme MD025-06.0A5B050C-WJ30RD

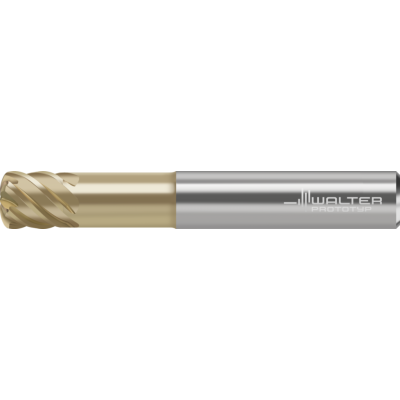

Högmatningsfräs i solid HM

MD025-06.0A5B050C-WJ30RD

EAN-kod: 4042446303181
M-helical-interpolation-Icon M-plunging-open-Icon M-pocket-milling-Icon M-ramping-Icon
D-M-Z5-6-Icon M-ohneZentrums-Icon M-Spiralw-50-Icon Recon-Icon
P
M
K
N
S
H
O
VAT 0% 109,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
P MR MD025 A D R C D 01
Enlarge
Description Symbol Value
Skärlängd
Lc
6 mm
Verktygsdiameter
Dc
6 mm
Kontaktdiameter
d1
6
brukbar längd
l3
19 mm
Total längd
l1
57 mm
Maximalt överhäng
l4
21 mm
Verktygsbeteckning
Designation
MD025-06.0A5B050C-WJ30RD
Radie
Rf
3 mm
Radie
R
0,5 mm
Offset radie
xf
1,4 mm
Ersättningsradie
Rers
0,755 mm
Antal tänder
Z
5
