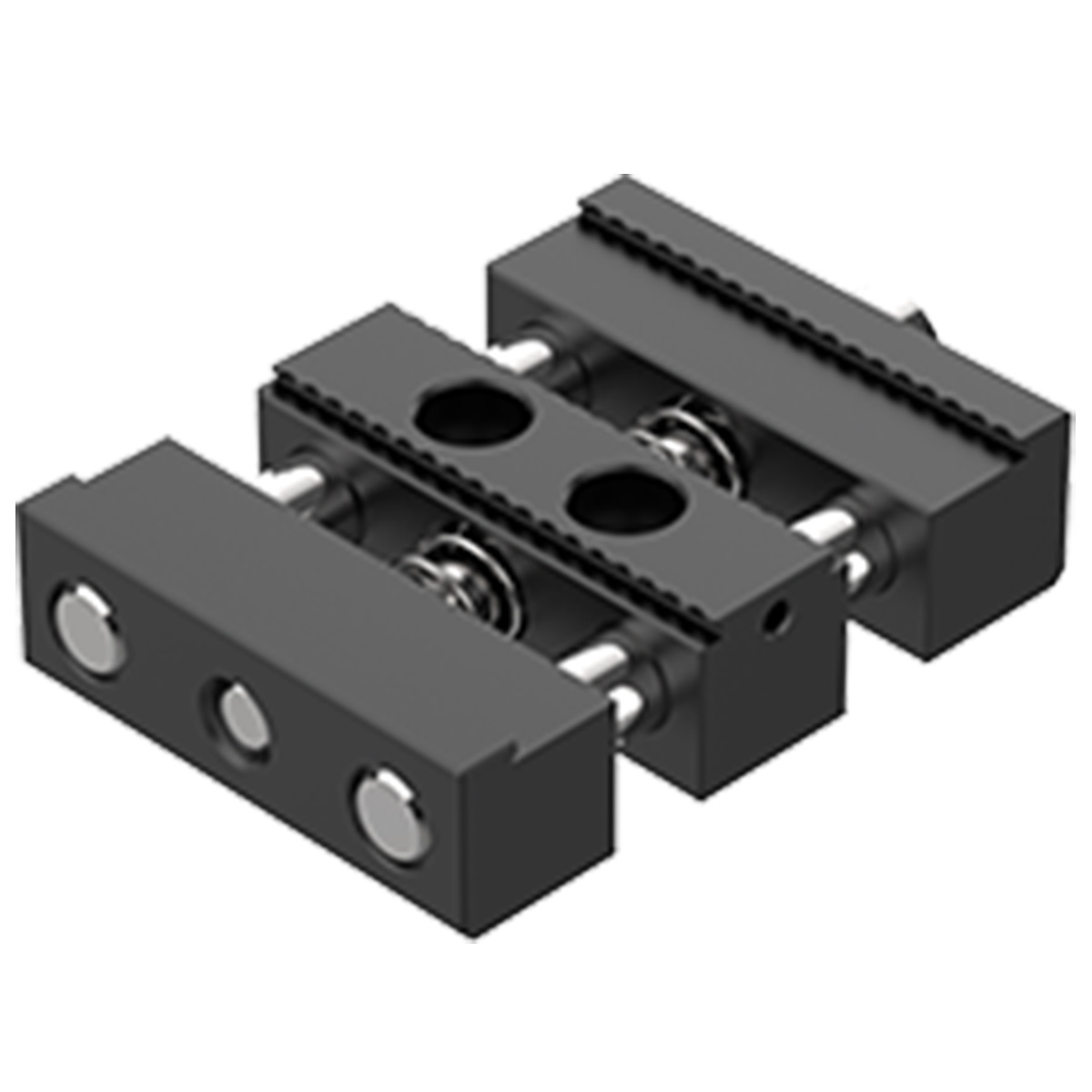

Doppel- Self-Centering Vise (Pin vice)

5th.PV3X-4B NEW 2024

EAN-kod: 4250000006410

Jaw width 75mm, Clamping range 6,35mm - 25,40mm

VAT 0% 299,00 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

- Pin Vise (75mm x 111.6mm x 25mm)
- RockLock™ compatibility: 96mm
- The double-station pin vise
- Extreme low-profile design
- Light weight
- Great for tombstones + Automation
- Serrated gripper teeth with optional dovetail built in
- Direct mount from top down with SHCS and Dowels
- Jaw Width: 75mm
- Clamping Range: 80: 0.25" - 0.50", 100: 0.50" - 0.75", MAX: 1.00"
- Max Torque: 47,5 Nm
- Clamping Force at Max Torque: 418,94 Nm

Appendices

Technical details

Modeller
5th.PV3X 4B D 3D Zeichnung

Description Symbol Value

-
